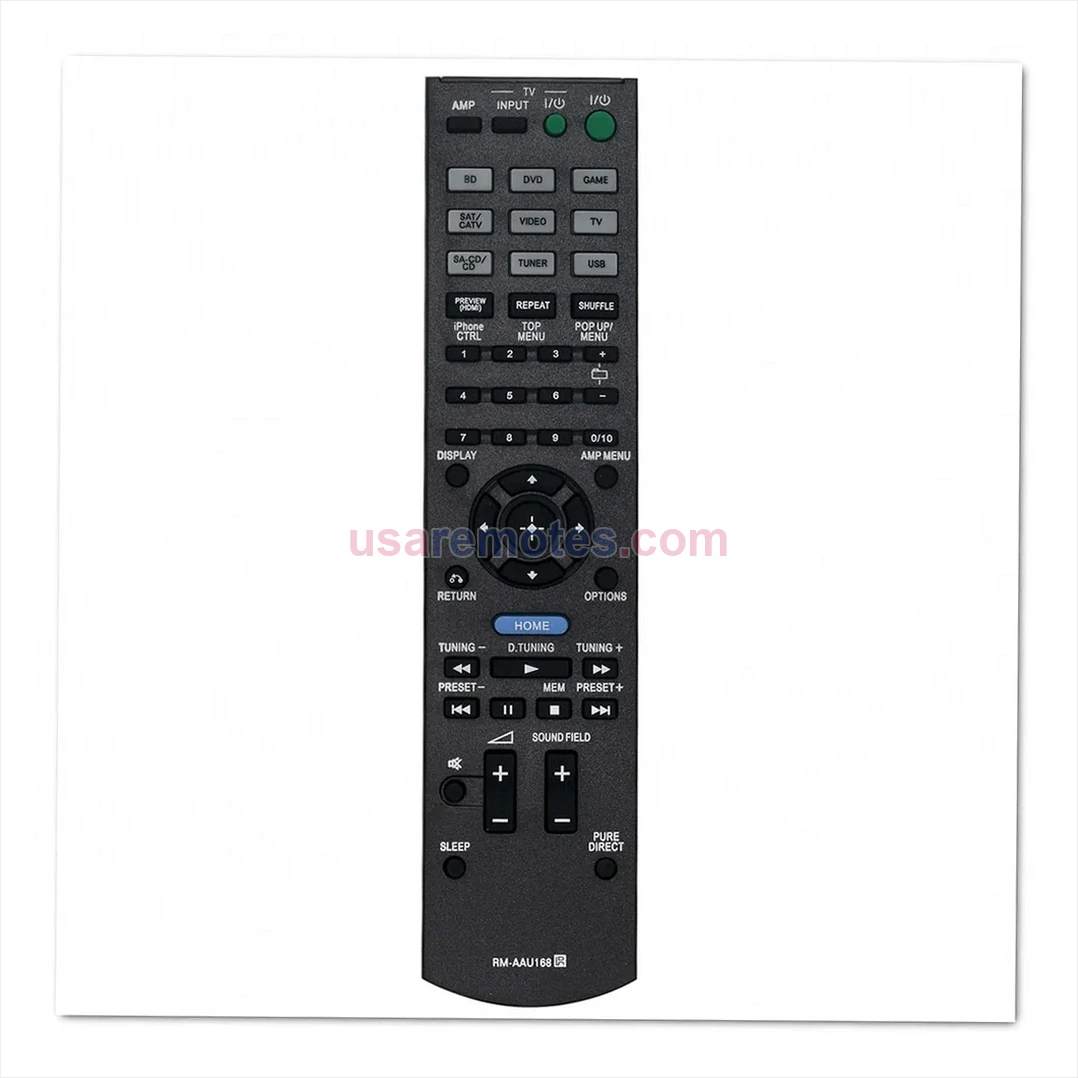

Sony STR-DH540 AV Receiver Remote Control

$19.99

Sony STR-DH540 remote replacement runs volume, input selection, surround modes, and 4K pass-through functions on this 5.2-channel AV receiver (part number RMAAU168).

46 in stock

Description

About This Remote

This replacement covers input switching across four HDMI inputs, surround-mode selection for Dolby TrueHD and DTS-HD Master Audio, volume, and 4K pass-through settings. It works over infrared with no programming, code entry, or pairing required. The STR-DH540 was released in 2013 and delivers 145 watts per channel across its 5.2-channel configuration, and this remote lays out the day-to-day controls in the familiar places. It runs on 2 x AA batteries.

Why buy this remote

  • Covers all five channels and the full surround-mode selection on the STR-DH540.
  • Works without any programming, code entry, or pairing steps.
  • Lays out the day-to-day controls in the familiar places for the STR-DH540.
  • Controls 4K pass-through and HDMI input switching across all four HDMI inputs.

Compatible part numbers

Sony STR-DH540 Remote Specifications
Batteries2 x AA
Part numberRMAAU168
Device TypeAV Receiver
CompatibilitySony STR-DH540 AV Receiver
Warranty1 year

Sony STR-DH540 AV Receiver Specifications

Channels 5.2
Total Power Output 725 Watts
Power Output Per Channel 145W per channel (6 Ω, 1kHz, 10% THD)
Stereo Power Output 90W + 90W (6 Ω, 20Hz, 20kHz, 2-channel driven, 0.09% THD)
HDMI Inputs 4
HDMI Outputs 1
HDMI Features 4K/30p pass-through, 3D, ARC, Standby Pass-through
Audio Formats Dolby TrueHD, DTS-HD Master Audio, Pro Logic IIz
Calibration Digital Cinema Auto Calibration (D.C.A.C.) with included microphone
Optical Inputs 2
Coaxial Inputs 1
Analog Audio Inputs 4
USB Front USB port (iPod/iPhone/USB flash drive playback/charge)
Dimensions 16.9 × 6.1 × 13.0 inches
Weight 16.3 lbs

Frequently asked questions

Will this remote control work with my Sony STR-DH540 AV receiver without any setup?

Yes. The Sony STR-DH540 remote requires no programming, code entry, or pairing. Insert batteries and it responds to the receiver immediately.

What part number is this replacement sold under?

This replacement is sold under part number RMAAU168, which is the correct Sony part for the STR-DH540.

Which surround and audio formats can I select using this remote?

This remote gives you access to all audio-format and surround-mode settings the STR-DH540 supports, including Dolby TrueHD, DTS-HD Master Audio, and Pro Logic IIz.

Can I control the 4K and HDMI functions of the STR-DH540 from this remote?

Yes. This remote covers HDMI input switching across all four HDMI inputs and the 4K/30p pass-through settings built into the STR-DH540.

Does the STR-DH540 have Bluetooth or Wi-Fi that this remote would need to support?

No. The STR-DH540 does not include built-in Wi-Fi or Bluetooth, so no special connectivity features are involved. This remote communicates directly with the receiver's infrared sensor.

What batteries does this remote use?

It takes 2 x AA batteries.

Additional information
Compatible BrandSony
Device TypeAV Receiver
Compatible ModelSTR-DH540
Power Source2 x AA
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Sony STR-DH540 AV Receiver Remote Control”
